Aperçu /Produits/machine à refendre les noyaux/Wrapping and Damping Manual Type Honeycomb Cardboard Slitting Machine (long narrow& honeycomb materials cutting)

Wrapping and Damping Manual Type Honeycomb Cardboard Slitting Machine (long narrow& honeycomb materials cutting)

1.0 Sets
MOQ
Wrapping and Damping Manual Type Honeycomb Cardboard Slitting Machine (long narrow& honeycomb materials cutting)
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Building Material Shops, Manufacturing Plant, Other
Showroom Location: None
Condition: New
Product Type: Slitting Machine
Processing Type: Paper Slitting and Rewinding Machine
Voltage: 380V/50Hz
Power: 11kw
Weight: 3500 kg
Warranty: 1 Year
Production Capacity: 4-40m/min
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Hot Product 2021
Warranty of core components: 6 months
Core Components: Motor, Blade
Model: BDFQJ-2000/2500/3000(S)
Width of passing paper board: 2000/2500/3000mm
Max. Board thickness: 70mm
Min. board length: 500mm
Color: Blue
Type: Manual type
Speed: 4-40m/min
After-sales Service: Online services
Application: Packaging and cushioning materials
Informations de base
Model Number: BDFQJ-2000/2500/3000(S)
Conditions de paiement et expédition
Packaging Details: Export Wooden Packing
Supply Ability: 5 Set/Sets per Month
Description de produit
Product name
Paperboard slitting machine
Model
BDFQJ-2000/2500/3000(S)
Width of passing paper board
2000/2500/3000mm
Max. Board thickness
70mm
Min. board length
500mm
Speed of paper board
4-40m/min
No. Of knives
17-21
Min.slitting width
60mm
Diameter of knife
350mm
Thickness of blade
2.8mm
Motor power
11kw, 380V/50Hz, 3 phases
Weight of machine
3500kg
Depth adjustment
Manually

Introduction

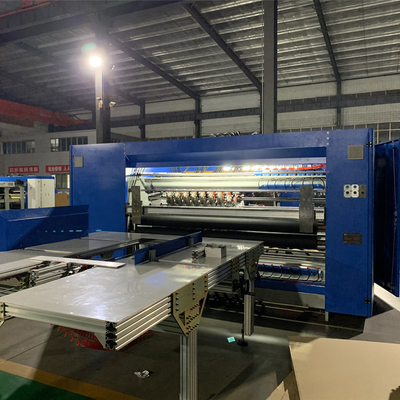

This machine is used to cut narrow pieces of honeycomb boards from big panels. Min. Slitting width is 60mm. Each blade can lift up and down to decide to use or not. In one shaft, the min. Distance between each blade is 120mm.
Recommend Products
Company Profile
WUXI SHENXI Honeycomb Machinery Factory is located in the beautiful landscape of the strand of Tai lake, In the center of YANG SHAN town (LU Ou). It is only one kilometer away from the Xiyi expressway's exit, so the transportation is very convenient. WUXI SHENXI honeycomb machinery factory is a technical factory, specially engaged in the research, development and sales of the Honeycomb paper core and the honeycomb paperboard complete set production equipments. We have the smooth relationships and cooperation with the related domestic Research & dP.velopment institutes, the experts and the manufacturer. Based on the guide of the market requirements and relied on the high technology project, our factory is focusing on the research, development and expends of the honeycomb production equipment and the application of this technology.
Our productions export to USA, Canada, Dubai, Russia, Brazil, Egypt, Vietnam, Ukraine, Italy etc. The local customers have: Guangdong, Jiangsu, Shanghai, etc. located in over ten provinces. The machines are widely used to supply products or services for Haier, Gree, Samsung, Midea, Honda, IKEA.
These customers provide a ministrant opportunity for us, and we provide them with satisfying services. We persist in that the customer is the first, with providing wonderful after-sales services. That's the principle of our company.
